For Underground Use
Fire & Emergency Safety Cap Lamps. High-visibility lighting for rescue & hazardous environments.
Cordless miner cap lamp with Li-ion battery, 80-hour lighting, LED brightness, durable, safe, lightweight, fast charging, long-lasting performance.
Years of experience
95%
S. G. Electrochemicals is a proprietorship firm formed in the year 1985 with an aim to serve a varioust industries with high quality Miners’ Safety Cap Lamps. We are amongst the most appreciated manufacturers of Miners' safety equipments for Mining and Oil industries and other lighting equipments for Railways and Marine sectors.
As leading Safety Cap Lamp manufacturers and suppliers established in Howrah, West Bengal, we are empowered with a state-of-the-art manufacturing unit well equipped with Latest Technologies.
need any help?
Discover how we ensure safety and reliability in every product we manufacture, from concept to completion.
High-grade materials ensuring durability in harsh environments.
For Intrinsic Safety Meeting Government Standards.
State-of-the-art manufacturing unit with Indian technology.
We provide high-performance lighting solutions for mining, fire safety, and industrial applications. Designed for safety and durability.
Our portfolio showcases a diverse range of products, from high-performance cap lamps to heavy-duty search lights for rescue operations.

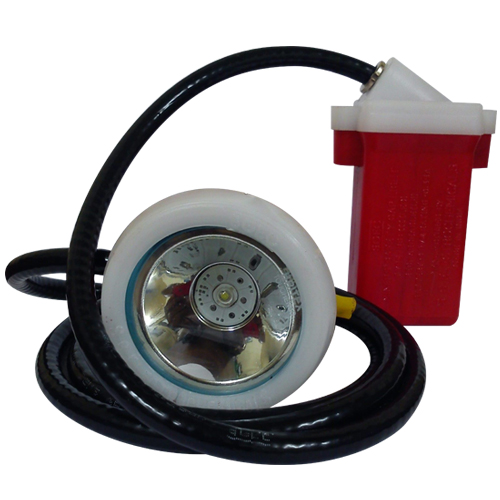

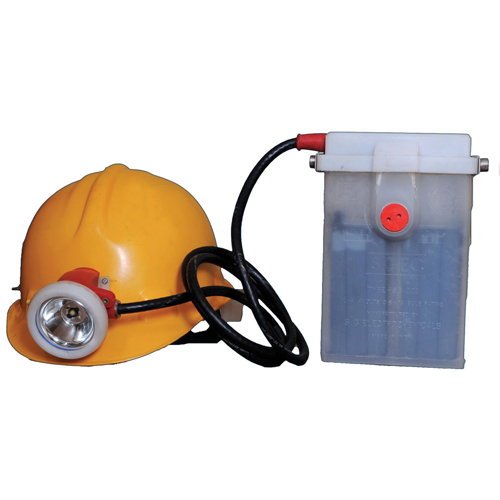

Power LED of 1 watt, 3.6 volts and 110 lumens.Life of LED 50,000 hours (approx.) Light out-put of Cap-Light 3000-5000 lux (approx.) at high intensity mode & 2100-2800 lux (approx.) at low intensity mode. Lithium-ion Battery of 3.6 volts & 4.5 Ah capacity. Rating 350 mA (max.)Total weight within 460 gms ( approx ).Rechargeable through Head-piece unit from 4 volt (max.) charging source / charger unit.Operation through Rotary Switch fitted on the Head-piece.Battery container unit having moulded-in Belt-loops for tie-up on the waist.Service back-up (non-stop) around 48 hours against every full-charge.Intrinsically safe for Gas Group- I. Degree of protection level – I P 65.The Cap Light is free from any electronic circuit for trouble free service & suitable for Indian Mining conditions.
Power LED of 1 watt, 3.6 volts & light out-put 110 lumens. Life of LED 50,000 hours (approx.)Rotary switch with dual switching mode.Light out-put of Cap-Light 3000-5000 lux (approx.) at high intensity mode & 2100-2800 lux (approx.) at low intensity mode.Lead-acid Battery of 4 volts & 9 Ah / 12 Ah capacity, Rating 350 mA (max.) Light out-put is far better than any Filament Bulb type Cap Lamp.Prolonged service hours of the Cap-Light unit (more than 135 hours to 210 hours continuously or more than 15 / 20 working shifts ).Life of Cap-Light unit estimated to above 1000 re-charge cycles.Greater satisfaction for users.Very economical in price.

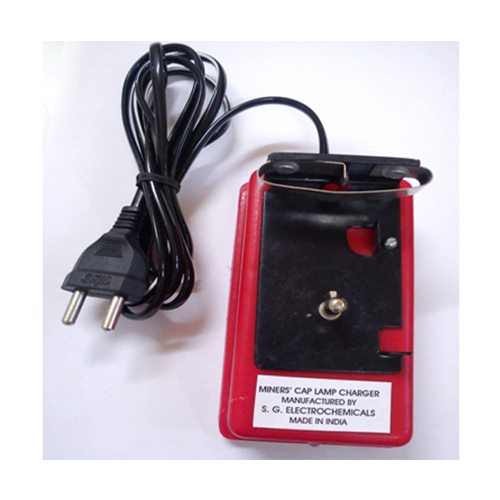

Complete in Plastic Cabinet measuring ( approx. ) 124 mm. length X 70 mm. width X 62 mm. height having SMPS based charging system, On - Off Toggle switch, LED indicator (red during charge & green indication on full charge). Out - put charging point assembled with Key plate assembly as well as in - put Chord with plug etc. operating in - put voltage 230 V. A.C.

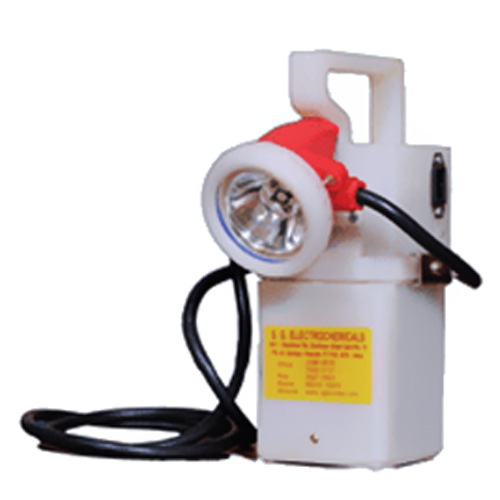

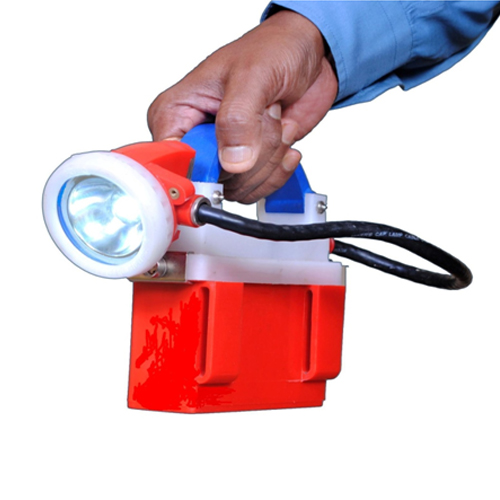

Power LED of 1 watt, 3.6 volts and 110 lumens. Life of LED 50,000 hours ( approx. )LED Light out-put 3000 lux ( max. ) & auxiliary Light Source 2100 Lux.Lithium-ion Battery of 3.6 volts & 4.5 Ah capacity. Rating 350 mA ( max. ).Total weight within 750 gms. ( approx ).Rechargeable through Head-piece unit from 4 volt (max.) charging source / charger unit.Operation through Rotary Switch fitted on the Head-piece for main & auxiliary Light Source.Battery container unit with molded-in Belt-loops for tie-up on the waist as well as fitted with Handle on Top-Cover for Hand carrying also.Head-piece unit is detachable for fixing on Helmet.

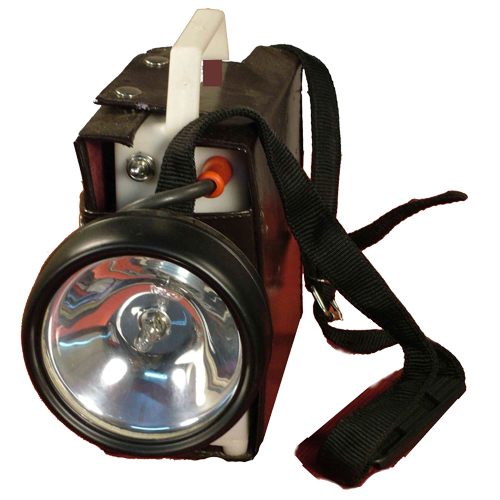

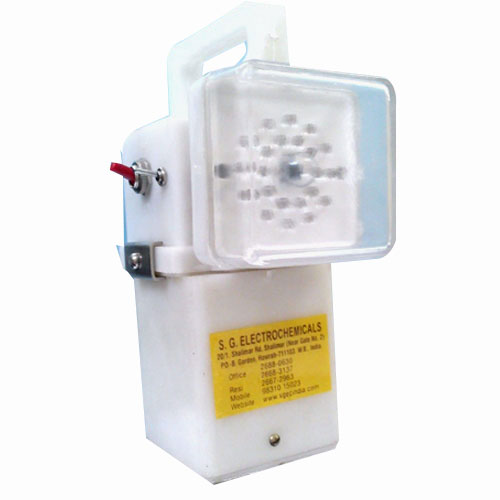

A MULTI-USE LAMP, BUILT TO STAND ALL INCLEMENT WEATHER CONDITIONS. THE LAMP IS DESIGNED WITH ALL TECHNICAL FACILITIES TO RENDER SERVICES TO DEFENCE, MINES, RAILWAYS, INDUSTRIES, HOSPITALS, SECURITY, POLICE, FIREMEN, BANKS, HOTELS, UNDERGROUND TUNNELS AND FOR ANY RELIEF OPERATIONS.THE BATTERY USED - Sealed maintenance free 6v., 4.5 Ah.LIGHT SOURCE : LED - 1 watt.BASE ( SQUARISH ) - Size 7.5 Cms. x 7.5 Cms. X height 21 Cms. ( approx. ) including HANDLE.TOTAL WEIGHT - 1.6 Kgs. (1 Kg. 600gms) approx.

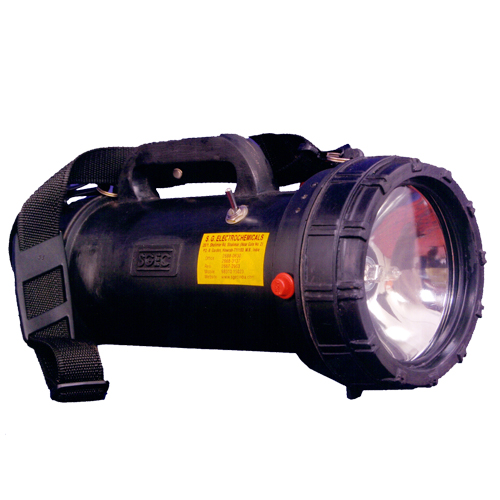

The company has established itself in the market as a prominent hand held search light manufacturing company in India. We are offering an extensive range of long range hand held search light which is available 12 V SMF Battery....

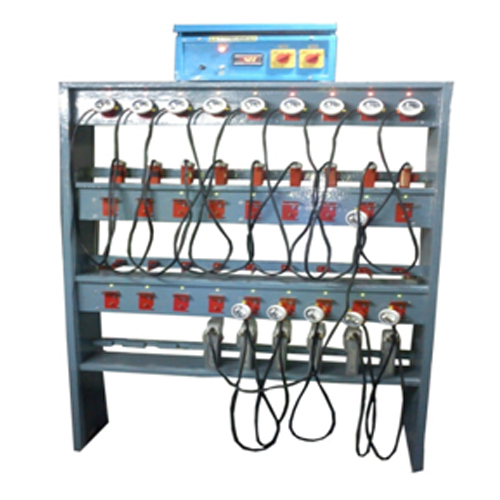

The Cap Lamp ( SGEC-MAKE, TYPE-SG:III ) is charged by a system of modified constant potential on a frame and charger unit, specially designed for Cap Lamps. The special charging equipment, in addition to providing an efficient method of charge, saves labor in the Lamp cabin because it permits a “ self-service” system, in which the Miner himself takes his Lamp from the Lamp cabin, and puts it on Charge at the end of his The Lamps therefore are not charged for a fixed period, but are left on charge until next requirement. Each Lamp takes only the current necessary for a correct charge, provided the Charger voltage is maintained at the specified value of 4.1 Volts (max.) by rotating the coarse & fine rotary switches. The output voltage displayed on the meter should never exceed 3.4 volts at no load condition.Charging equipment is normally supplied as a complete unit consisting of a 27-Type Charger and frame, which will accommodate 27 Lamps. Three shelves each with nine charging positions.

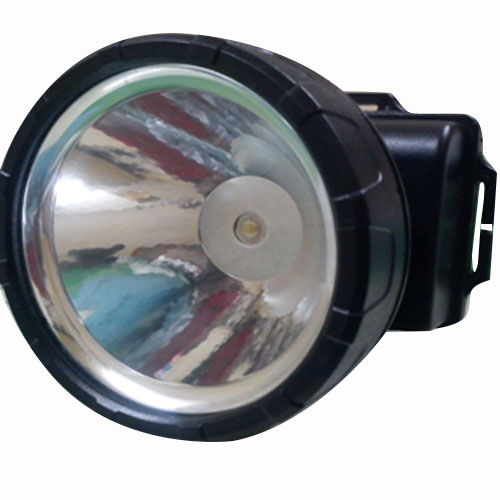

Rated Capacity of Battery Above 1.4 Ah. Rated Voltage of Battery 3.6 Volt.Light Source Power LED ( 1 Watt, 110 Lumens )Rated Voltage of LED 3.6 Volt Life of LED 50,000 HoursMode of Light out - put High Intensity Low Intensity Initial Light out-put 5,500 Lux 4,500 Lux Lighting Time ( continuous ) Above 15 Hours Above 20 Hours Rated Current 100 mA – 105 mA 80 mA – 85 mA Battery Life 800 CyclesCharging Time 3 – 3.5 Hours Charging Voltage 110 V – 250 Weight Around 151 gms.Front Diameter 72 mm( approx ).
With immense of expertise, we are capable of catering the requirements of various industries throughout the country...

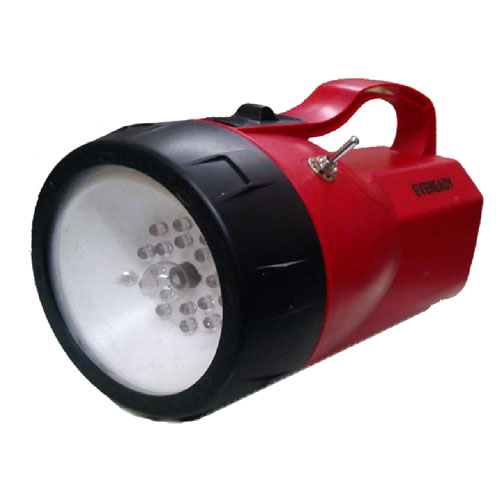

Light weight ( 560 gms. approx. including 4 nos. Dry Cells & 250 gms. approx. excluding 4 nos. Dry Cells ) with plastic body cylindrical in shape fitted with milky white Reflector covered under front glass. The Reflector is assembled with Bulb ( filament type ) of 6 V., 0.5 Amp. for YELLOW Light & LEDs for RED colour 10 (ten) nos. in circular module as well as GREEN colour 8 ( eight ) nos. in circular module.Operating Voltage – 6 Volts by 4 nos. Dry cells ‘R - 20’ size of 1.5 volts each .The Bulb ( YELLOW light ) is operated by main Sliding-switch & the LEDs ( RED & GREEN ) is operated by a small Toggle-switch provided nearby the Sliding-switch provided for YELLOW Light. The central position of the Toggle-switch is “OFF” & left or right positions are “ON” for RED & GREEN Colours respectively.SPECIAL FEATURES : Only single colour-source can be switched-on at one sort ( either RED or GREEN ) by Toggle-switch only & the YELLOW Light can be Switched-on alongwith RED LEDs or GREEN LEDs by the Sliding-switch only.
The company has established itself in the market as a prominent hand held search light manufacturing company in India. We are offering an extensive range of long range hand held search light which is available 12 V SMF Battery....
The Bulb ( YELLOW light ) is operated by the main Toggle-switch & the LEDs ( RED & GREEN ) are operated by the small Toggle-switch. Central position of the small Toggle-switch is “OFF” & left or right positions are “ON” for RED & GREEN LEDs respectively.SPECIAL FEATURES : Only single colour-source can be switched-on at one sort by small Toggle-switch( either RED or GREEN ) & the YELLOW Light can be Switched-on by the main Toggle-switch only.
Our comprehensive approach for design process from initial brainstorming to final Conceptualisation.
Our state-of-the-art facility manufactures the equipment using high-tech machinery.
Every product undergoes rigorous testing to ensure it meets safety standards.
Our products are complitly made in india
Our team of experts ensures every product is built to the highest safety and quality standards, meeting rigorous industrial requirements. Trusted by safety professionals
Stay informed about the latest trends in mining safety, industrial lighting technology, and regulations.
